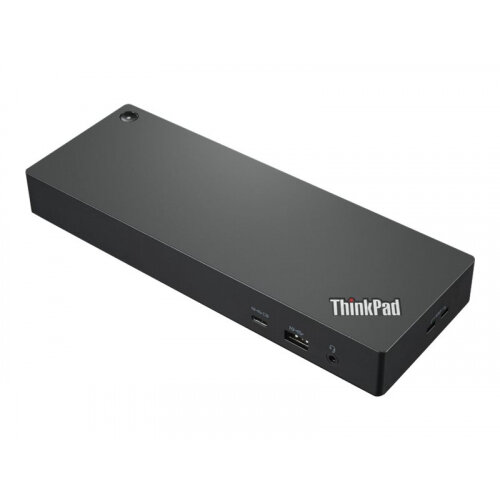

Lenovo ThinkPad Universal Thunderbolt 4 Dock Docking Station - Thunderbolt 4, HDMI, DisplayPort, USB-C, 3.5mm Phone Audio Jack, Network RJ-45 - Gigabit Ethernet, 135 Watt Power Adapter, Security Lock Slot 40B00135UK
• Enterprise-Grade Universal Thunderbolt™ 4 Docking Experience: ThinkPad
Universal Thunderbolt 4 Dock delivers reliable and consistent industry leading
video, data and power connectivity in a Windows based mixed-PC environment.
• Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps.
• The ThinkPad Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
• The ThinkPad Universal Thunderbolt™ 4 Dock supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support, silent firmware upgrades, vPro/AMT Pass through support, and data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
See More.....
• Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps.
• The ThinkPad Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
• The ThinkPad Universal Thunderbolt™ 4 Dock supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support, silent firmware upgrades, vPro/AMT Pass through support, and data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
See More.....
|
Frequently Bought Together
| £8.28 | ||
| £10.95 | ||
| £46.00 |
Product Specification
- Product Code
- 7214280
- Manufacturer Ref
- 40B00135UK
- Barcode
- 195349000000
- Alternative Code(s)
- IM-CC80806
- Connects To
- Thunderbolt 4
- Brand
- Lenovo
- Number of USB-A Ports
- 4
- Number of USB-C Ports
- 1
- HDMI
- Yes
- VGA
- No
- DisplayPort
- Yes
- Network Port
- Yes
- Power Delivery
- No
- Mini DisplayPort
- No
- DVI
- No
- Headphones Port
- No
- Card Reader
- No
- Thunderbolt 3
- No
- Thunderbolt 4
- Yes
- Serial port
- No
Product Details
- Lenovo ThinkPad Universal Thunderbolt 4 Dock Docking Station - Thunderbolt 4, HDMI, DisplayPort, USB-C, 3.5mm Phone Audio Jack, Network RJ-45 - Gigabit Ethernet, 135 Watt Power Adapter, Security Lock Slot 40B00135UK
Specifications
| General | |
|---|---|
| Product Type | Docking station |
| Width | 22 cm |
| Depth | 8 cm |
| Height | 3 cm |
| Weight | 450 g |
| Enclosure Colour | Black / red |
| Localisation | Hong Kong, Malaysia, Singapore, United Kingdom |
| Networking | |
| Data Link Protocol | Gigabit Ethernet |
| Expansion / Connectivity | |

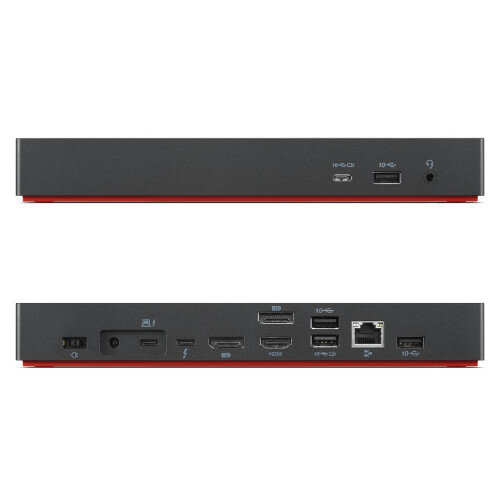

| Interfaces | 3 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 with Always-on charging - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 with Always-on charging - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Thunderbolt 4 - 24 pin USB-C ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole |
| Miscellaneous | |

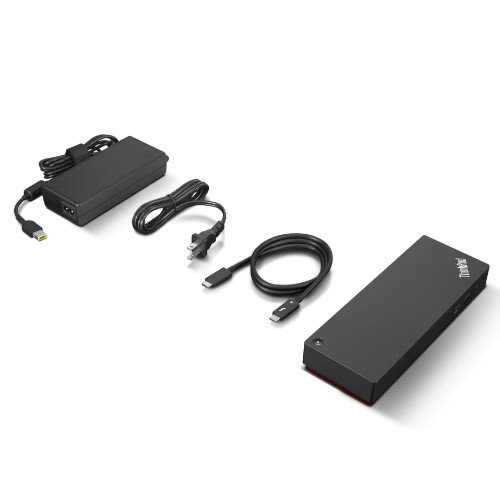

| Cables Included | 1 x Thunderbolt 4 cable - external |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | NOM, FCC, cULus, ICE |
| Power | |
| Power Device | Power adapter |
| Power Provided | 135 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 27 cm |
| Shipping Depth | 19.5 cm |
| Shipping Height | 8.5 cm |
| Shipping Weight | 1.2 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Compatibility Information | |
| Designed For | Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX ¦ Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ ¦ Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 |
