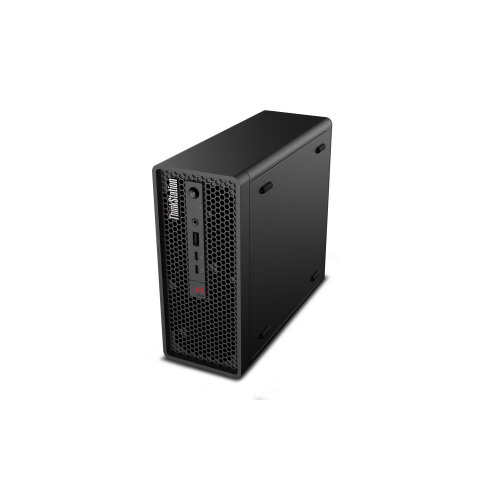

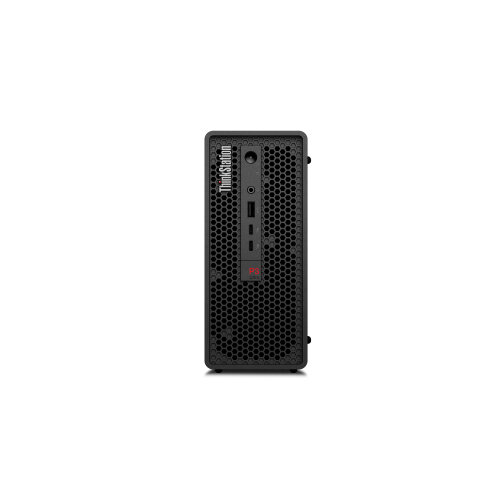

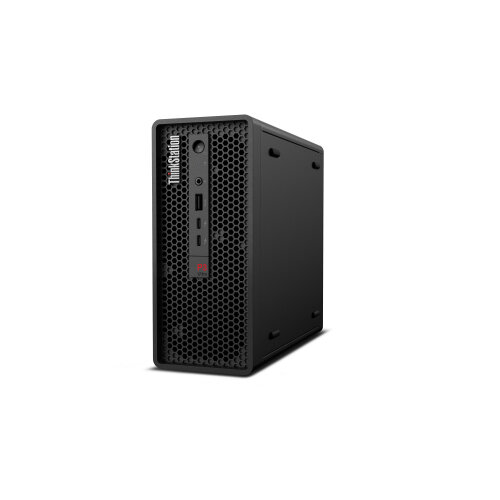

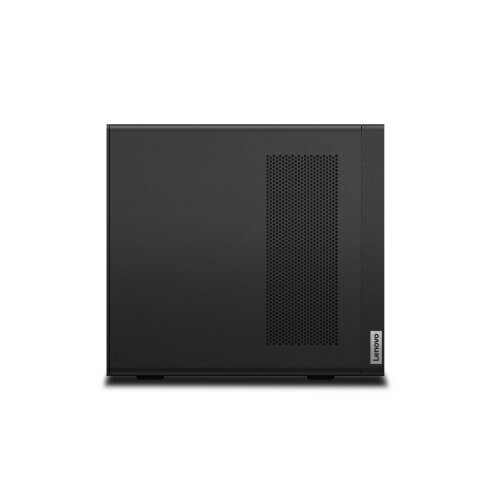

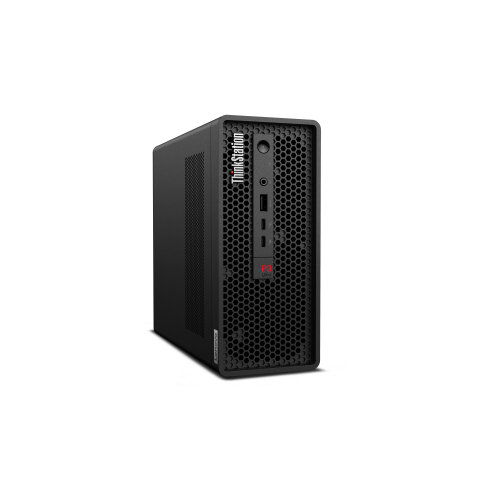

Lenovo ThinkStation P3 Ultra SFF Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro Mini Tower Workstation Black
- Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB
- 2x 8GB SO-DIMM DDR5-4800 Non-ECC
- 1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- 1x NVIDIA T400 4GB
- Windows 11 Pro
Product Specification
- Product Code
- H44539478
- Manufacturer Ref
- 30HA004NUK
- Barcode
- 0197531841049, 197531841049
Product Details
- Lenovo ThinkStation P3 Ultra SFF Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro Mini Tower Workstation Black
Redefining the power of small
- Packs amazing power into an industry-first 3.9L chassis small form factor
- Blazingly-fast Intel vPro® with Intel® Core™ processors, vast memory
- Choice of optional professional discrete graphics
- ISV-certified, handles complex workflows with ease
- Supports remote monitoring & system management
- Designed for compact spaces, suitable for any industry
- Packs amazing power into an industry-first 3.9L chassis small form factor
- Blazingly-fast Intel vPro® with Intel® Core™ processors, vast memory
- Choice of optional professional discrete graphics
- ISV-certified, handles complex workflows with ease
- Supports remote monitoring & system management
- Designed for compact spaces, suitable for any industry
- Superior performance, smaller footprint

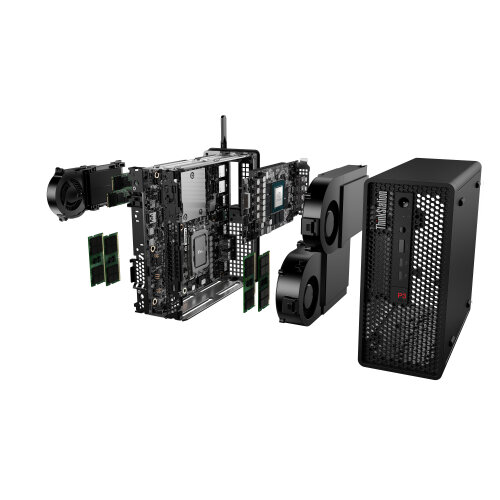

The Lenovo ThinkStation P3 Ultra small form factor boasts a revolutionary 3.9L form factor in a space-efficient chassis. Ideal for demanding workflows that require flexible configurations and maximum space savings, it’s designed to go wherever today’s professionals need to be. Powered by Intel vPro® with Intel® Core™ processors and with a choice of optional NVIDIA® discrete graphics, this workstation breaks new ground with an intelligently compact design that doesn’t compromise on functionality. - Configurable for today & tomorrow
No matter how heavy or complex your workflow needs are, the ThinkStation P3 Ultra SFF can be configured to meet them—now and well into the future. With support for massive memory and storage, plus an array of high-speed ports, including three DisplayPorts and dual ethernet ports, this workstation packs an unimaginable level of power and performance. It also comes with a USB mouse and keyboard. - Makes your workflows flow
The ThinkStation P3 Ultra SFF, with its optimal size and performance, is perfect for any industry, from architecture to healthcare and finance to education. MIL-SPEC-certified, it runs in even the most extreme conditions, from the Arctic to deserts. It also zips through high-performance workflows, such as CAD and Edge/IoT. And with its extensive list of ISV-certified applications, your most complex projects will be executed with ease.See the complete list of ISV certifications - Remote management, made easy
The ThinkStation P3 Ultra SFF supports the pluggable baseboard management controller (BMC). A specialized service processor, BMC uses sensors to track the physical condition of hardware such as PCs and network servers. It enables advanced remote monitoring and systems management, including installing BIOS updates and monitoring fan speeds, in this critical time of digital transformation. - All the security you need
The ThinkStation P3 Ultra small form factor comes with ThinkShield—a suite of hardware and software designed to safeguard both your workstation and data. It includes essential security features like Trusted Platform Module (TPM) to encrypt your sensitive data and programs to prevent unauthorized system access. It also has a self-healing BIOS should the BIOS be corrupted or maliciously attacked. For extra peace of mind, this PC supports Windows firmware updates.
Specifications
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x SO-DIMM |
| Memory clock speed | 4800 MHz |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA T400 |
| Discrete graphics card memory | 4 GB |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |

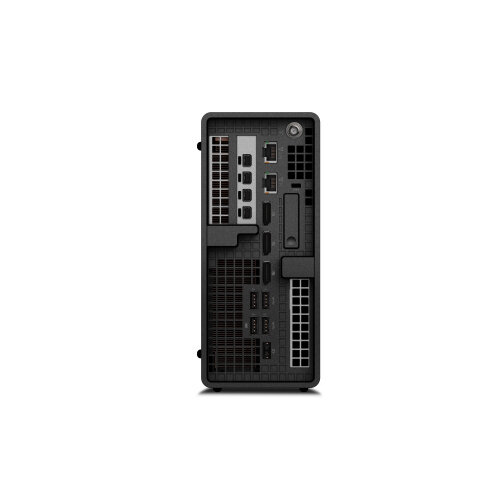

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| DisplayPorts quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Design | |
| Chassis type | Mini Tower |
| Volume | 3.9 L |

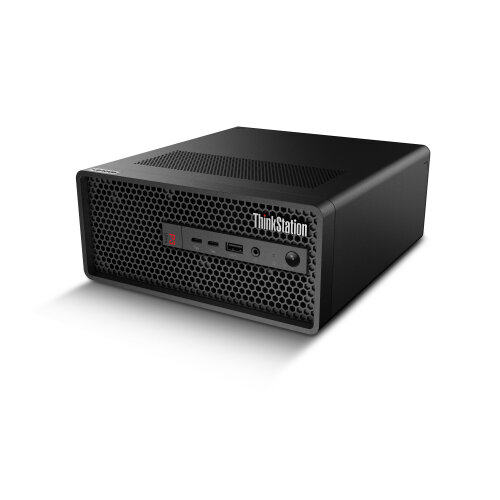

| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Motherboard chipset | Intel W680 |
| Audio chip | Realtek ALC897-Q |
| Audio system | High Definition Audio |
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Power | |
| Power supply | 230 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Weight & dimensions | |
| Width | 87 mm |
| Depth | 223 mm |
| Height | 202 mm |
| Weight | 3.6 kg |
| Packaging content | |
| Display included | No |
| Mouse included | Yes |
| Keyboard included | Yes |
